product name | Configuration details | Parameter details | Performance reference |
---|---|---|---|
Analog version ![]() |

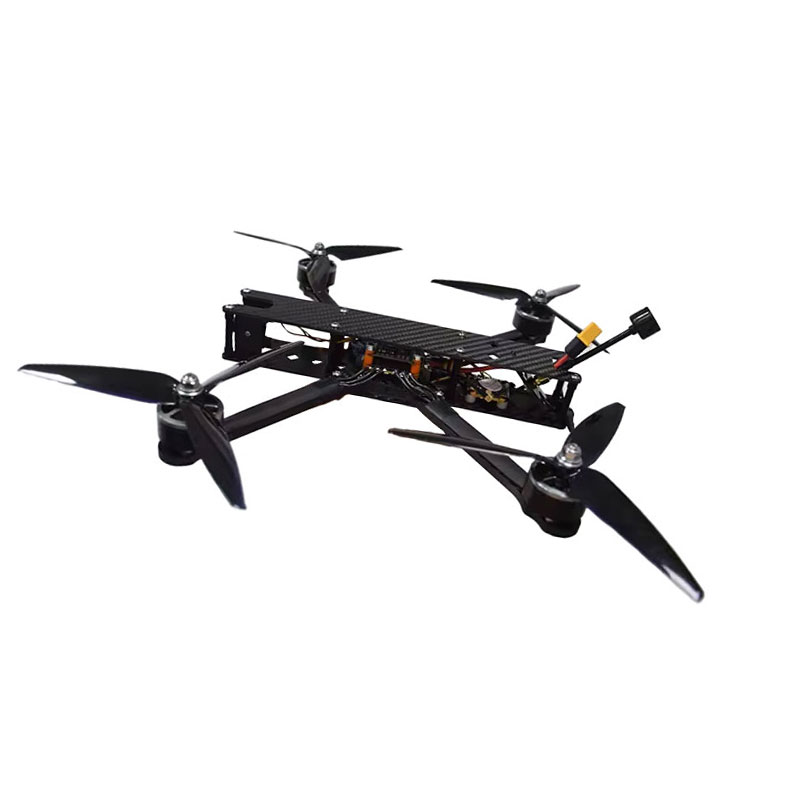

7-inch frame* 1 | Wheelbase: 324mm; frame size: 337 * 246mm |
. No load endurance of about 20 minutes (6S1P 4000mah battery) . Load 1 KG endurance for about 15 minutes (6S2P 4000mah battery); . Load 2kg for about 3 minutes (soft pack battery 4500 mah); The flight distance can reach about 5km each way |
F 411 PRO Flight control*1 |
Gyroscope: mpu6000; mounting hole position: 30 * 30 |
||
50 ABL _ S ESC *1 |
Input voltage: 3-6S; continuous current: 50A; Peak current: 55A (10 seconds) |
||
Caddx RATEL2 camera * 1 |
Caddx RATEL2 Camera camera | ||
1.6W VTX*1 1.2g VTX *1 (either-or) |
Output power: PIT/25/400/800/1.6W Output power: 750mw |
||
2806.5 Motor×4 | KV value: 1250KV input voltage: 25.2V (6S) | ||
DP7X4X3×4 | 7-inch 3-blade propeller | ||
Rhcp Antenna *1 | The 5.8G long-range high-gain antenna | ||
Battery strap *2 | 20 * 250mm battery strap | ||
Receiver *1 (optional) |
. elrs 915/ 2.4G Receiver; . TBS Receiver (single receive CROSSFIRE NANO / dual receive Crossfire Diversity) |
||
HD version ![]() |
7-inch frame* 1 | Wheelbase: 324mm; frame size: 337 * 246mm |
. No load endurance of about 20 minutes (6S1P 4000mah battery) . Load 1 KG endurance for about 15 minutes (6S2P 4000mah battery); . Load 2kg for about 3 minutes (soft pack battery 4500 mah); The flight distance can reach about 5km each way |
F 411 Flight control*1 | Gyro: mpu6000 | ||
50 ABL _ S ESC *1 |
Input voltage: 3-6S; continuous current: 50A; Peak current: 55A (10 seconds) |
||
Camera*1 (optional) |
. RunCam Link Air unit . Caddx Polar vista . DJI O3 Air Unit |
||
2806.5 Motor×4 | KV value: 1250KV input voltage: 25.2V (6S) | ||
HQProp DP7X4X3×4 | 7-inch 3-blade propeller | ||
Lhcp Antenna L 1 | The 5.8G long-range high-gain antenna | ||
Battery strap* 2 | 20 * 250mm battery strap | ||
Receiver *1 (optional) |
. elrs 915/ 2.4G Receiver; . TBS Receiver (single receive CROSSFIRE NANO / dual receive Crossfire Diversity) |
