With years of experience in production Chest Insert Plate Ballistic, Xinmeng can supply a wide range of Chest Insert Plate Ballistic. High quality Chest Insert Plate Ballistic can meet many applications, if you need, please get our online timely service about Chest Insert Plate Ballistic. In addition to the product list below, you can also customize your own unique Chest Insert Plate Ballistic according to your specific needs.
Bulletproof insert | ||||||||
Preface | Category | Picture | Technical parameters | |||||

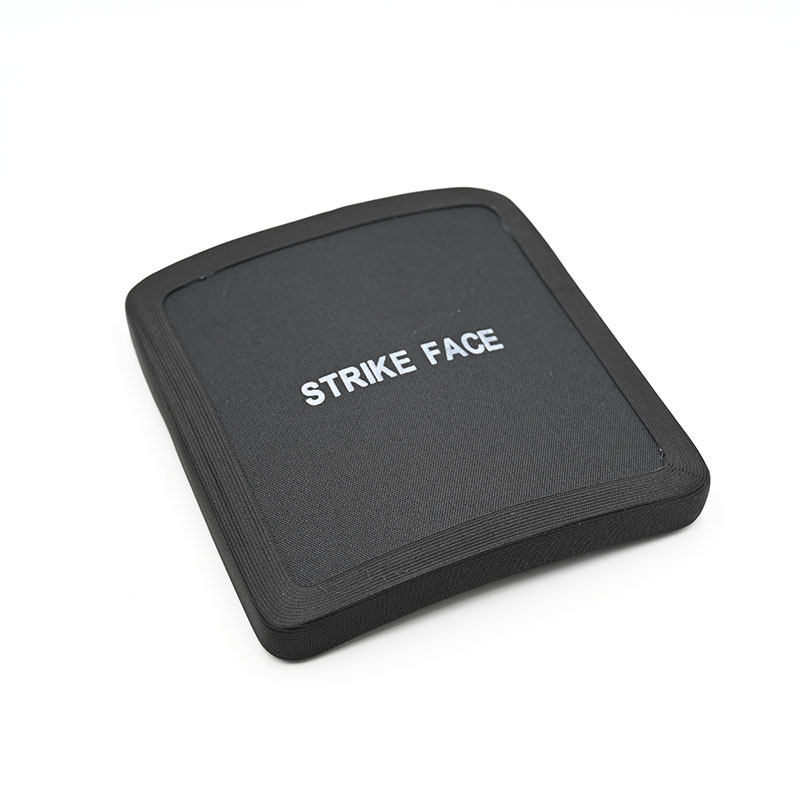

1 | Bulletproof insert-PE | Product name | PE bulletproof chest plate (PURE PE PLATE) | |||||
Bulletproof material | Ultra-high molecular polyethylene (PE) | |||||||
Color | Black, military green, camouflage, customizable | |||||||
Dimensions | 250*300mm | 250*300mm | 250*300mm | |||||
Bulletproof area(㎡) | 0.07㎡ | 0.07㎡ | 0.07㎡ | |||||
Thickness(mm) | 6.5±0.5mm | 14.5±0.5mm | 22±0.5mm | |||||
Bulletproof level | GA3 | GA4 | GA5 | |||||
Weight KGS | 0.50±0.05KG | 1.05±0.05KG | 1.55±0.05KG | |||||
Execution standards | "GA141-2010 Police Body Armor" | |||||||
Spray painting process | Wrapping cloth or polyurea | |||||||
Delivery | Determined based on order quantity | |||||||
Performance introduction |
•Single curve design fits ergonomics; •Choose 100% polymer polyethylene bulletproof material to provide a more lightweight solution; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board. |
|||||||
2 | Bulletproof insert-alumina | Product name | Composite bulletproof chest plate-alumina ceramic (Alu+PE) | |||||
Bulletproof material | Ultra-high molecular polyethylene (PE) + alumina AL2O3 ceramic sheet | |||||||
Color | Black, military green, camouflage, customizable | |||||||
Dimensions | 250*300mm | 250*300mm | 250*300mm | |||||
Bulletproof area(㎡) | 0.07㎡ | 0.07㎡ | 0.07㎡ | |||||
Thickness(mm) | 18mm | 22mm | 16mm | |||||
Bulletproof level | GA5 (10+8) | GA6 (10+10) | 95 rifle (10+6) | |||||
Weight KGS | 2.40±0.05KG | 2.75±0.05KG | 2.00±0.05KG | |||||
Execution standards | "GA141-2010 Police Body Armor" | |||||||
Spray painting process | Wrapping cloth or polyurea | |||||||
Shelf life | 8 years | |||||||
Delivery | Determined based on order quantity | |||||||
Performance introduction |
•Single curve design fits ergonomics; •Ultra-high molecular polyethylene PE + alumina AL2O3 ceramic sheets can provide a higher bulletproof level; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board. |
|||||||
3 | Bulletproof insert-silicon carbide | Product name | Composite bulletproof chest plate-silicon carbide ceramic (Sic+PE) | |||||
Bulletproof material | Ultra-high molecular polyethylene (PE) + silicon carbide SIC ceramic sheet | |||||||
Color | Black, military green, camouflage, customizable | |||||||
Dimensions | 250*300mm | 250*300mm | 250*300mm | |||||
Bulletproof area(㎡) | 0.07㎡ | 0.07㎡ | 0.07㎡ | |||||
Thickness(mm) | 18mm | 22mm | 16mm | |||||
Bulletproof level | GA5 (10+8) solo defense | GA6 (10+10) solo defense | 95 rifle (10+6) | |||||
Weight KGS | 2.10±0.05KG | 2.40±0.05KG | 1.70±0.05KG | |||||
Execution standards | "GA141-2010 Police Body Armor" | |||||||
Spray painting process | Wrapping cloth or polyurea | |||||||
Shelf life | 8 years | |||||||
Delivery | Determined based on order quantity | |||||||
Performance introduction |
•Single curve design fits ergonomics; •Selecting ultra-high molecular polyethylene PE + silicon carbide SIC ceramic sheets can provide a higher bulletproof level; •Cut angle design facilitates the removal and installation of the plug-in board; •Can be used with a bulletproof vest as a front or back panel to increase the level of bulletproofing, or used alone as an independent bulletproof panel; •Standardized size 250*300mm can protect the core parts of the body, different sizes can be customized; •Selected waterproof fabric or polyurea spray painting process, wear-resistant, aging-resistant, anti-corrosion and waterproof, extending the service life of the plug-in board. |
